Architectural High Speed Door Drawings
Download High Speed Door DWG Drawings for Your Architectural Project
View Our Door Range
Are you considering using our high speed doors for an upcoming project?
If so, we can provide an architectural high speed door drawing upon request (please choose from our range of doors below).
We also provide technical insights and support to architects throughout the design process.
Simply contact us here for a free consultation with a member of our technical support team.
Ensure accuracy on specifications with our high speed door DWG downloads
With GS Doors, you can keep your high speed door specifications accurate with high-quality architectural drawings.
Crafted with precision by our team of experts, our drawings include the essential structural detail architects need to specify with confidence.
Every detail meets the highest standards of technical accuracy and compliance.
Architectural Drawings
Please request a drawing from our high speed door range below and we will send it to you shortly. If you’re not sure which door is best for your architectural project, get in touch here to speak with a technical door expert.

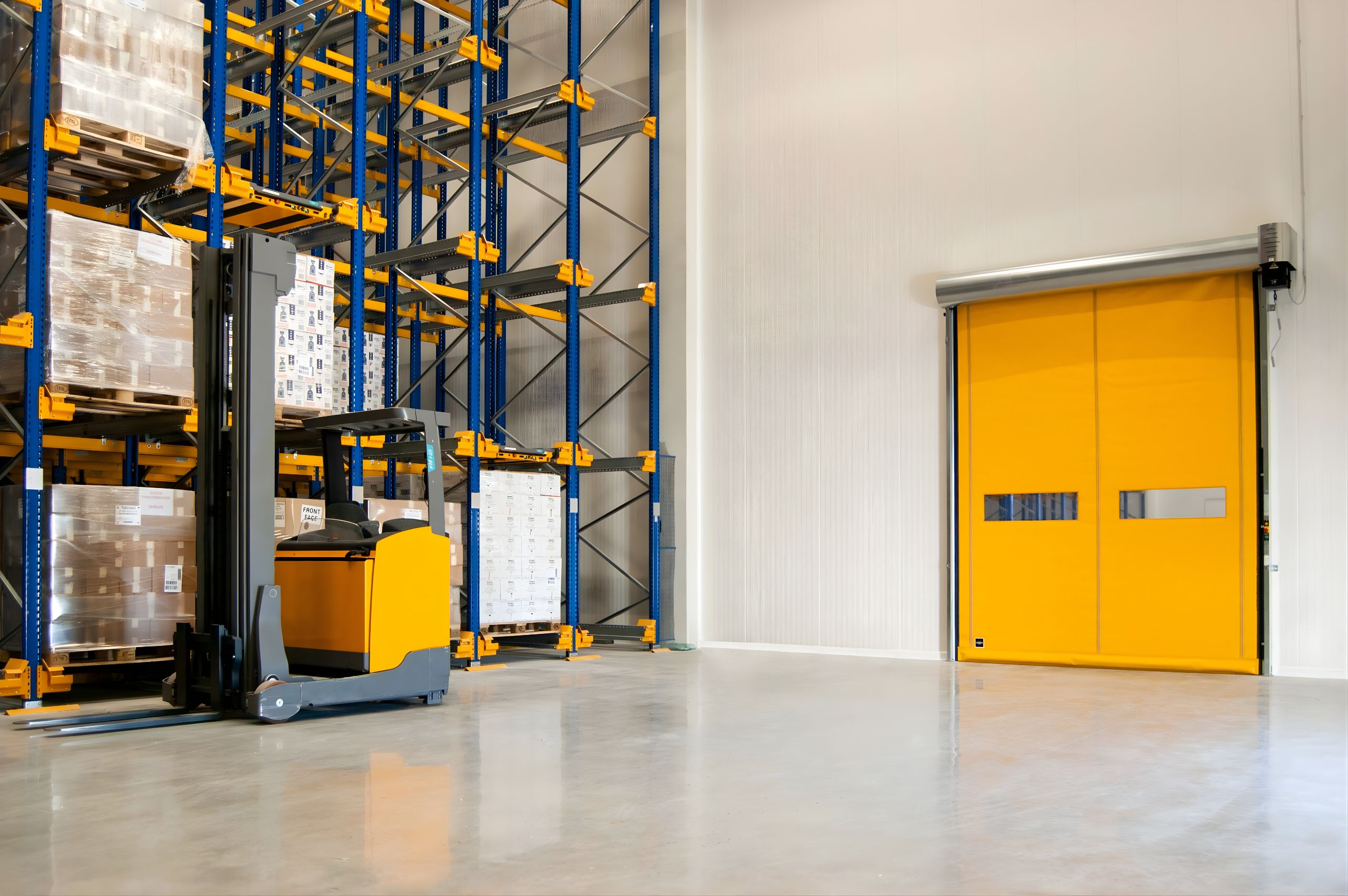

AUTO-FULL
Versatile rapid roll door suitable for internal and external applications.

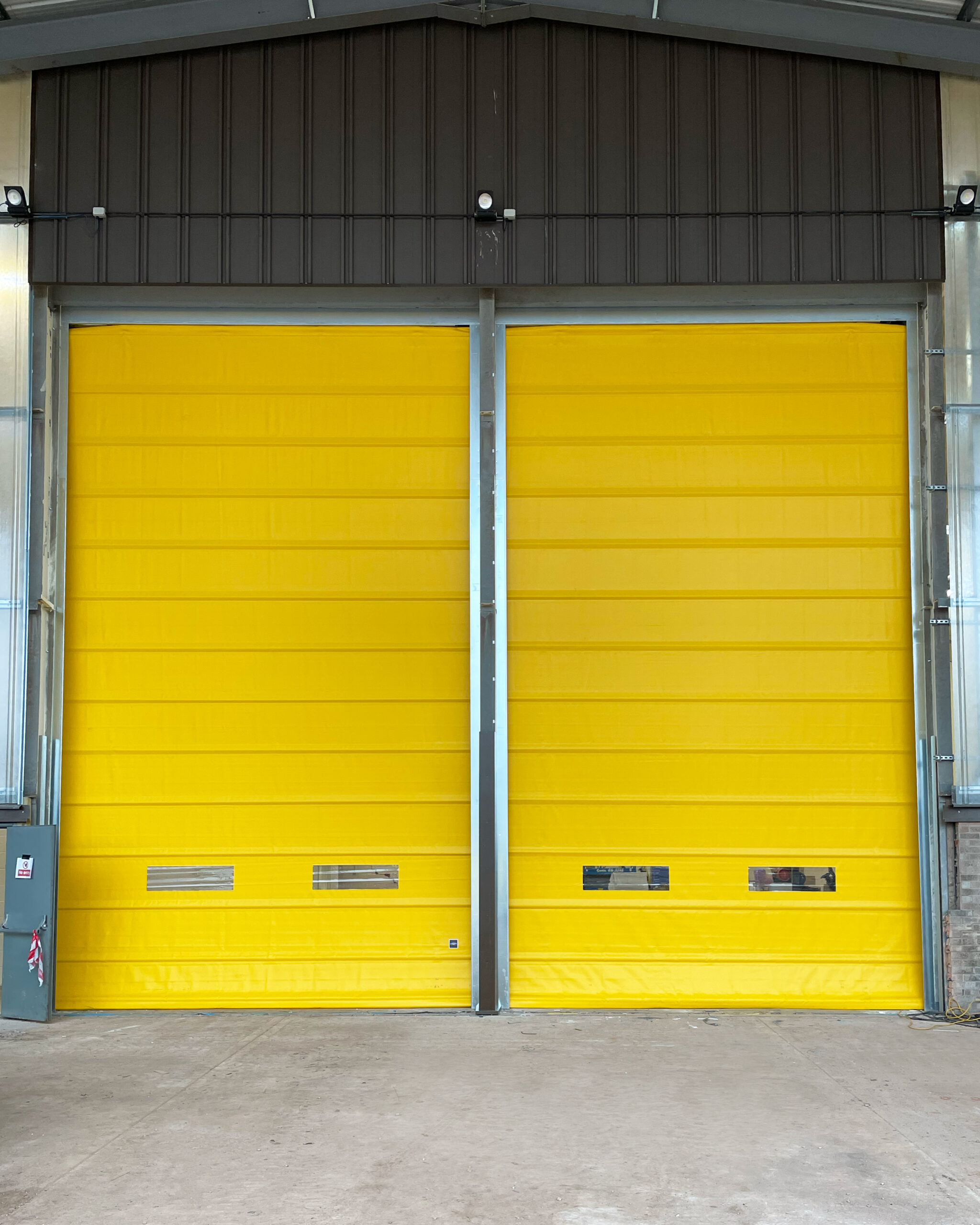

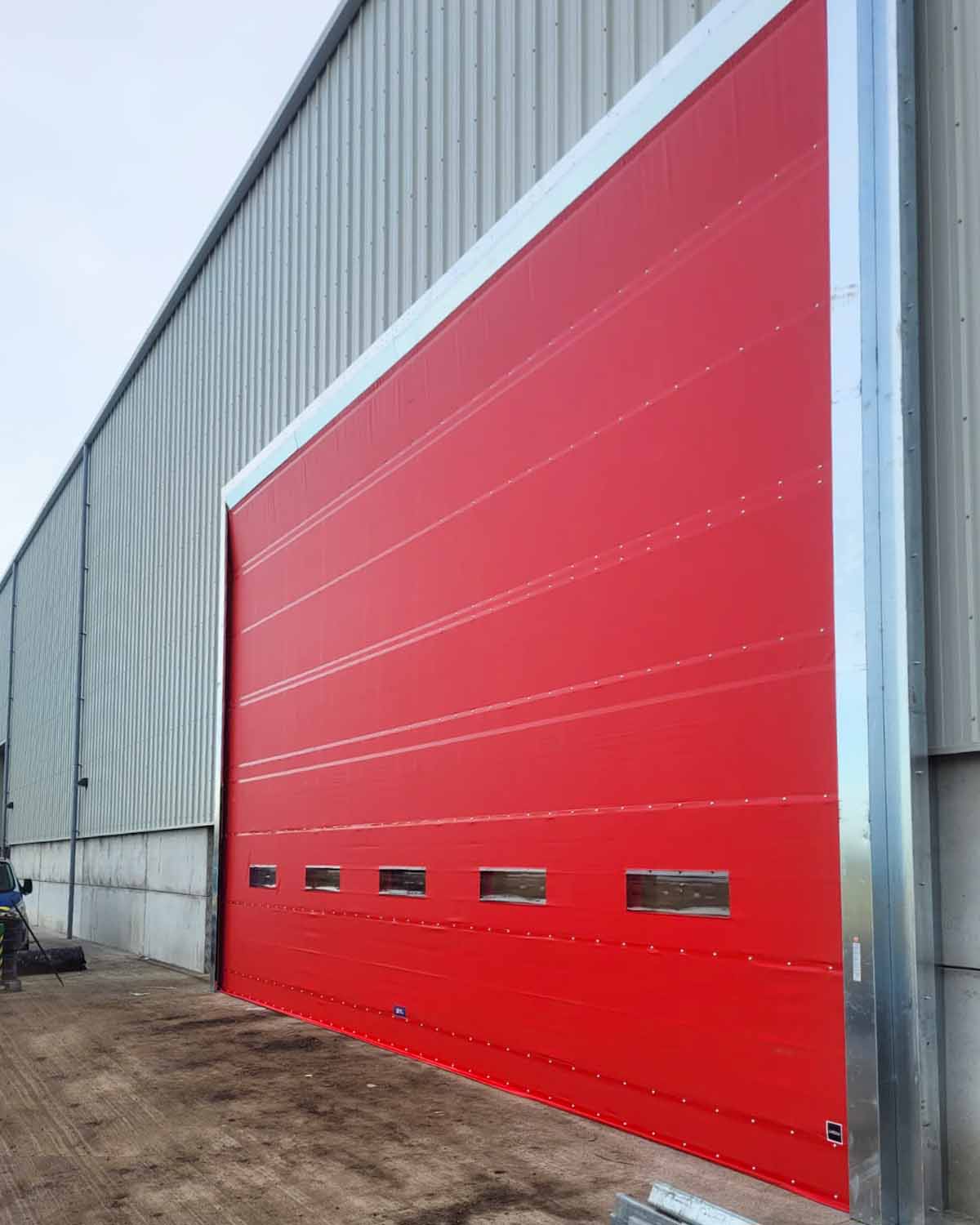

DUAL-AIR
Double-curtain folding door for large and extra large applications, like airport hangars.

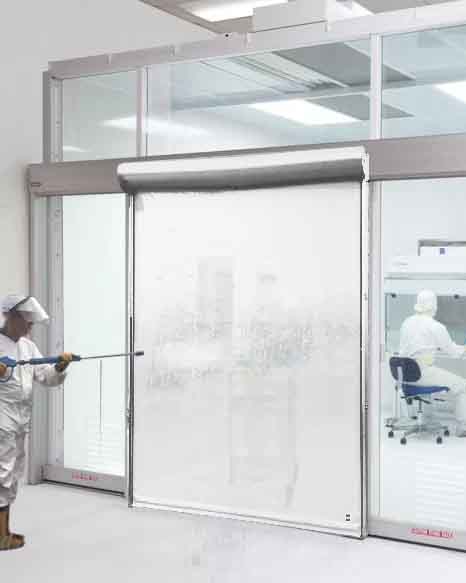

AUTO-PHARMA
Specifically for cleanrooms and pharmaceutical settings, AUTO-PHARMA provides a fast, hygienic operation.

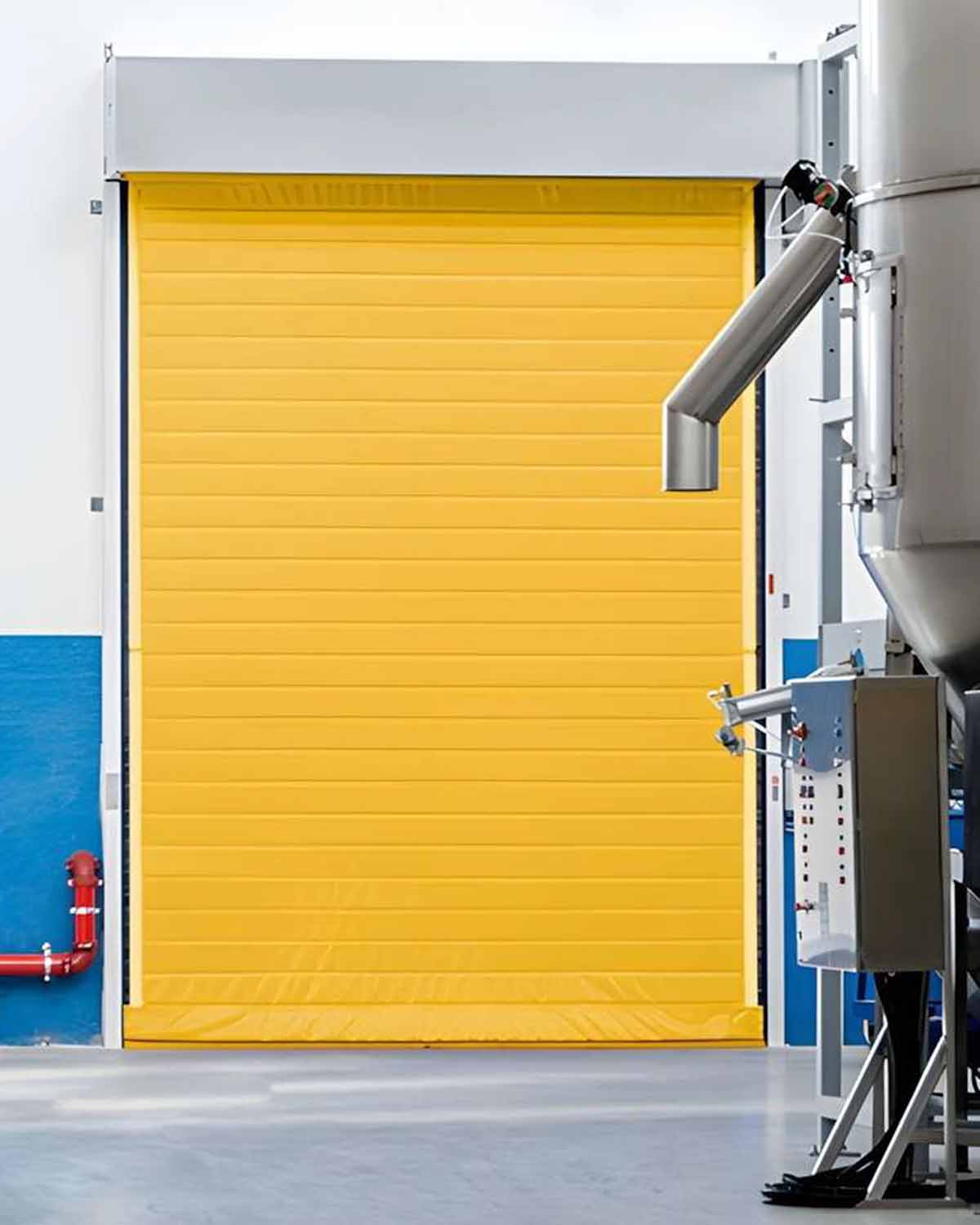

AUTO-FRIGO
Insulated high speed cold storage door built for refrigerated environments down to -10 degrees.

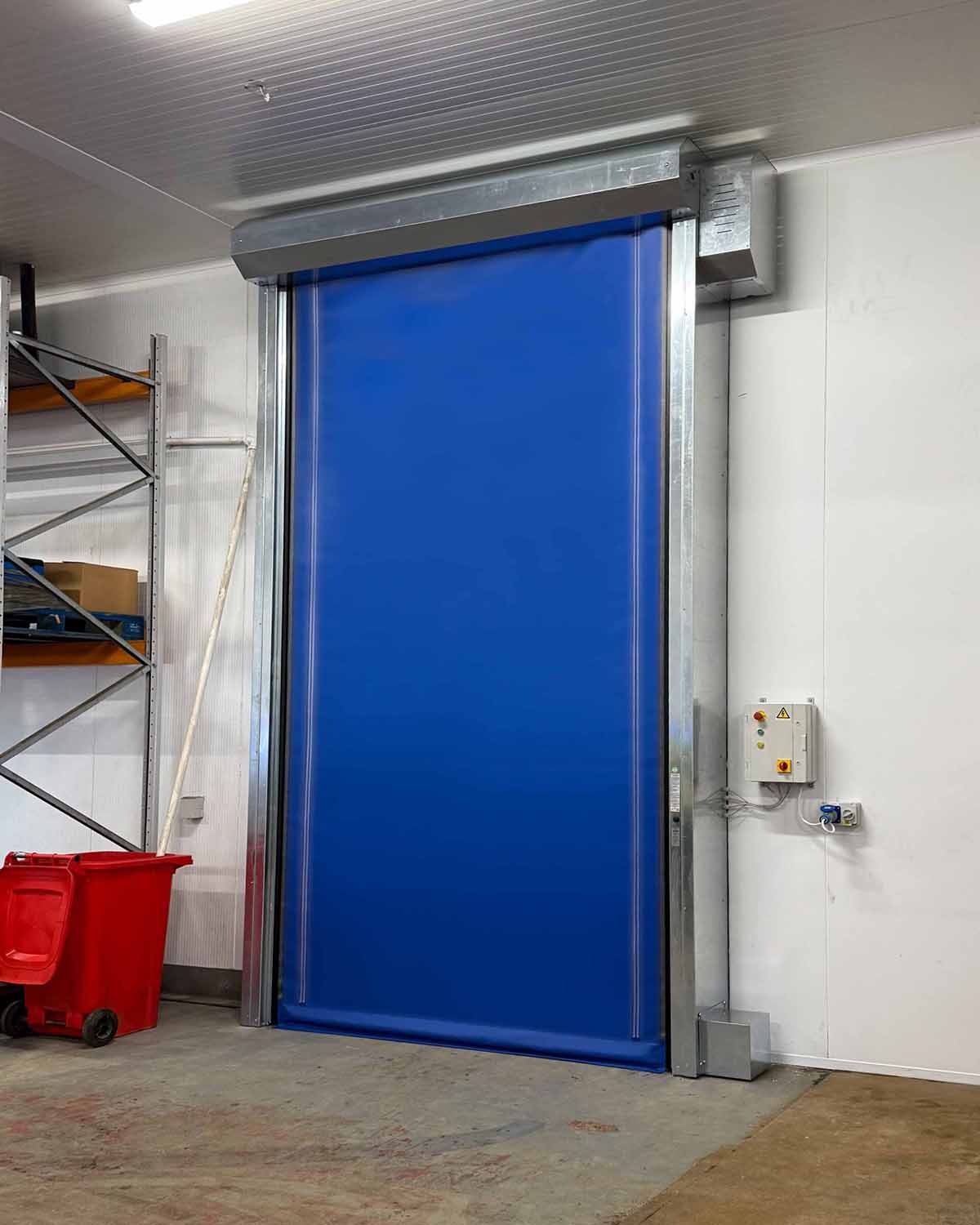

AUTO-FREEZER
AUTO-FREEZER thrives in challenging cold storage and refrigerated environments down to -25 degrees.

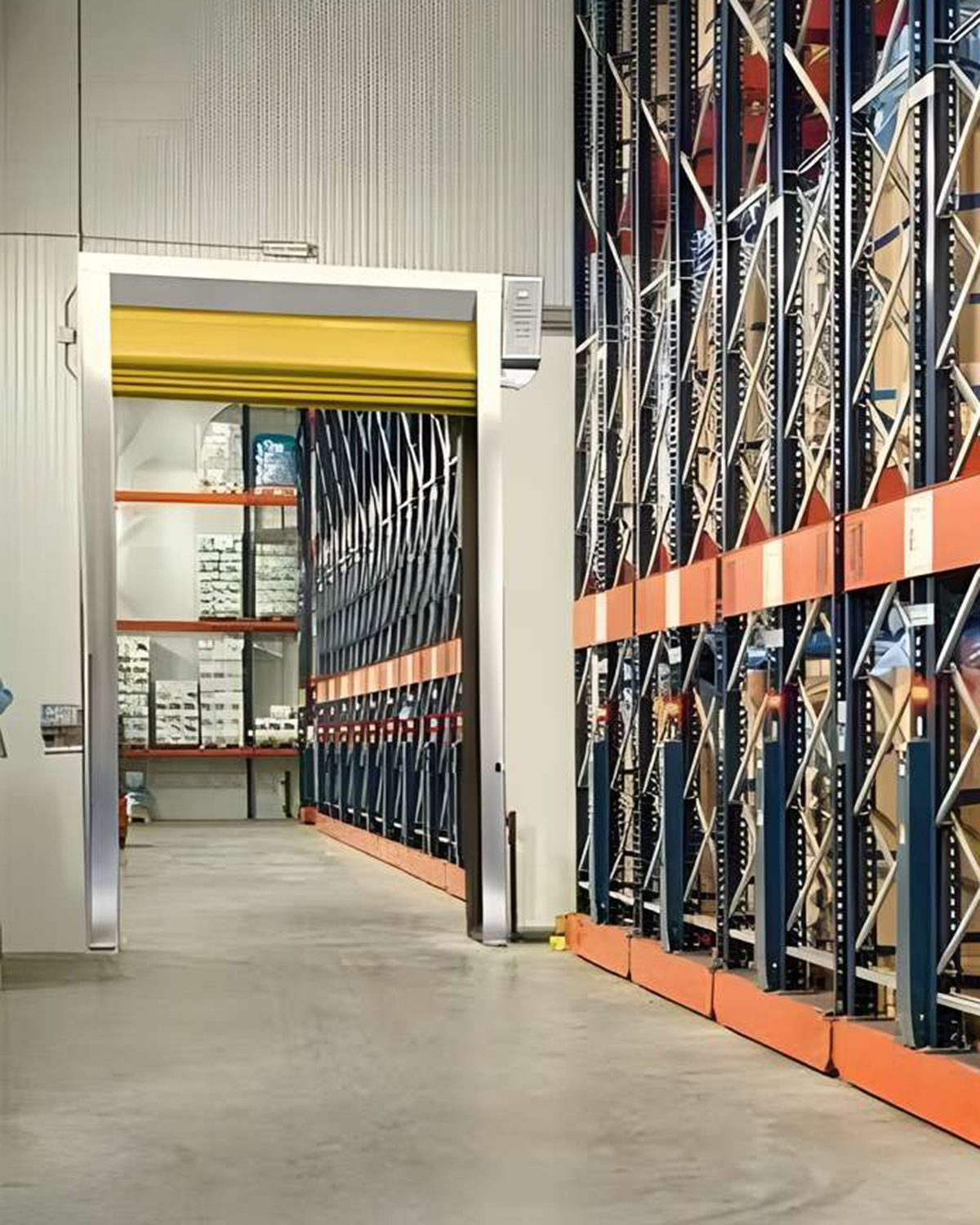

DUAL-FREEZER
DUAL-FREEZER is designed to separate two negative temperature environments, preventing condensation and ice buildup.

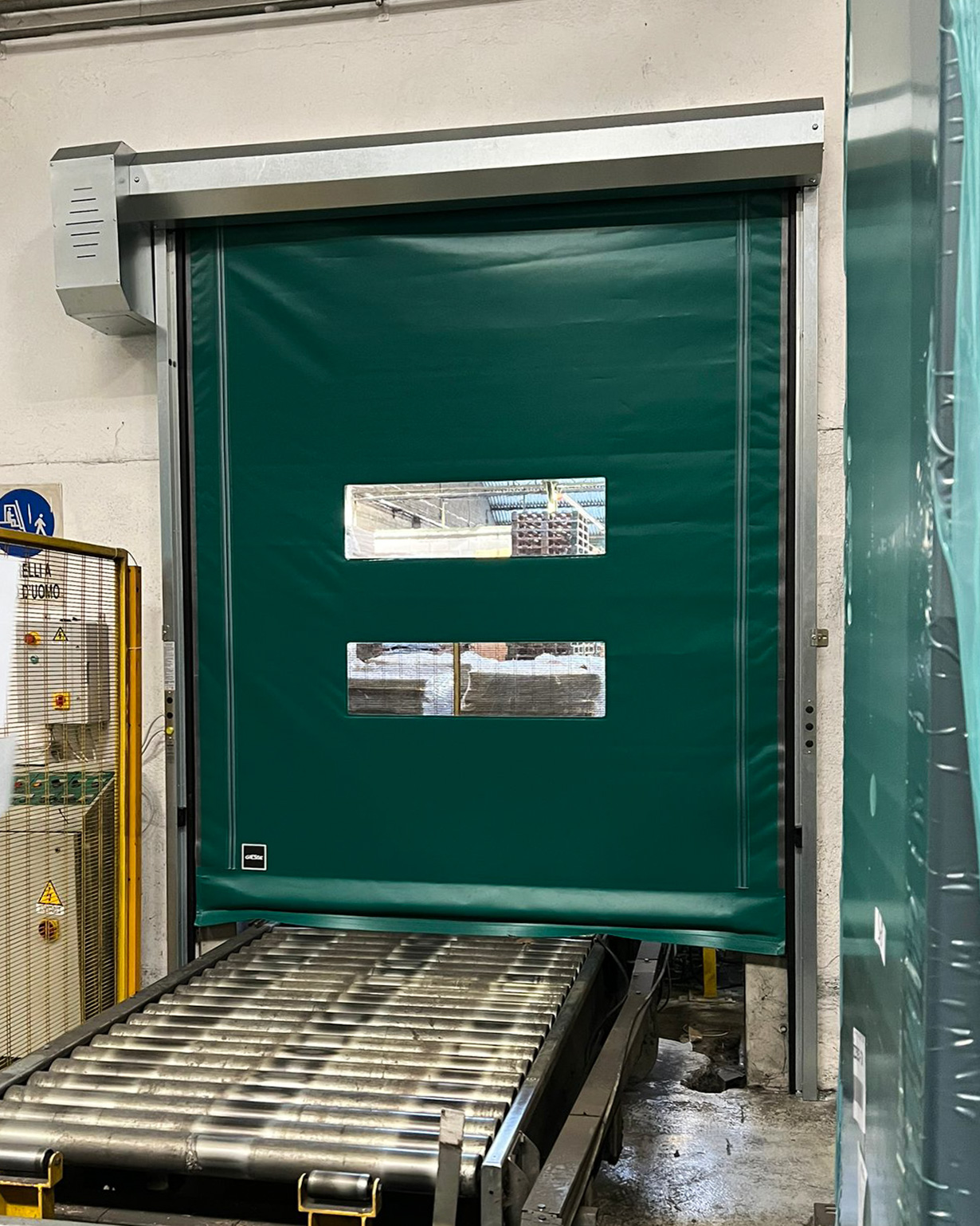

AUTO-MACHINE
AUTO MACHINE is designed to provide a protective barrier in machine enclosures and robotic cells.

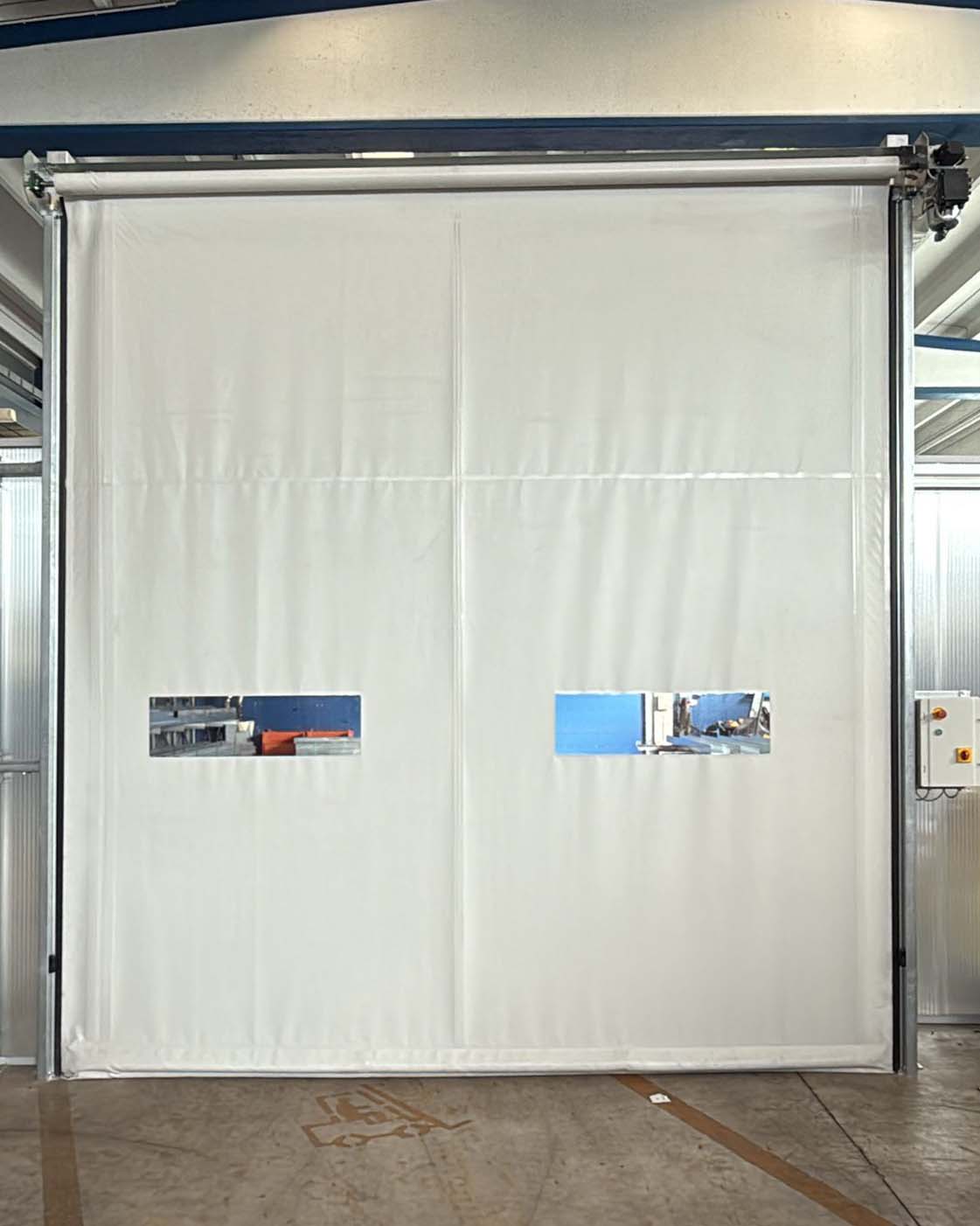

ROLL-UP
ROLL-UP is an entry-level, cost-effective rapid roll door made for internal applications only.
Request Your Architectural Drawing(s) Now
Please fill in the enquiry form along with your door model or email info@gsdoors.co.uk for your drawing.
